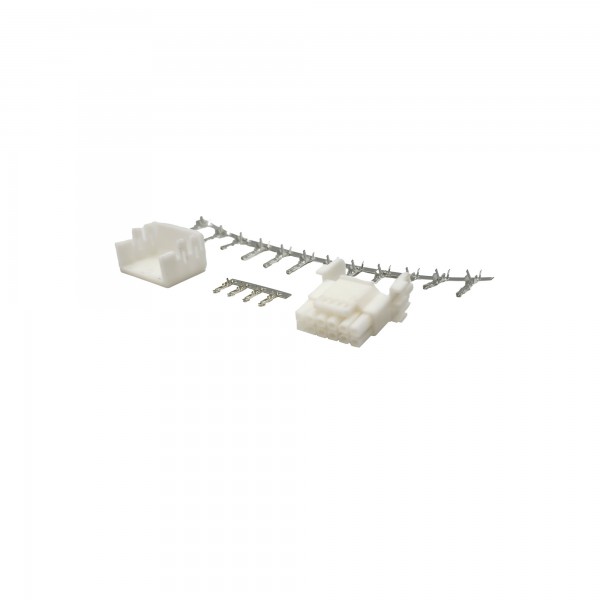

The ModMyMods ATX 3.1 PCIe Gen 5 H++ 12V-2X6 MicroFit 3.0 16-Pin Angled Connector Set White - Pins Included is a complete kit for building a 16-pin 12V-2x6 graphics card power plug: a white MicroFit 3.0 style connector housing, a matching 90° cover and loose terminal pins for the 12 power and 4 sense positions. The angled cover makes the cable leave the graphics card sideways, which helps in cases with little room next to the card.
Properties
- Type
- 12V-2x6 (H++) 16-pin connector set, 90° angled
- Standard
- ATX 3.1, PCIe Gen 5
- Positions
- 12 power + 4 sense
- Power
- Graphics cards up to 675W
- Terminal pins
- Included, loose (crimp on)
- Color
- White
- Pieces in the pack
- 1 set
Build your own 12V-2x6 cable
Crimp the included terminal pins onto your wires, push them into the housing and clip on the 90° cover. The result is a custom sleeved or plain GPU power cable in the length you need, with an angled plug for the 16-pin power socket of a modern graphics card.
Angled for tight cases
The 90° cover sends the wires sideways right at the plug, so the cable does not need room to bend in front of the card. That gives more clearance to a side panel and keeps the cable from pushing on the connector.
ATX 3.1 and PCIe Gen 5
The 12V-2x6 (H++) connector is the 16-pin GPU power connector of ATX 3.1 and PCIe Gen 5, with 12 power positions and a row of 4 small sense positions. It is the updated form of the 12VHPWR connector and is built for graphics cards of up to 675W.
Technical data
| Model | TD422-A |
| Type | 12V-2x6 (H++) 16-pin connector set, 90° angled |
| Standard | ATX 3.1, PCIe Gen 5 |
| Positions | 16 (12 power, 4 sense) |
| Style | MicroFit 3.0 |
| Power | Graphics cards up to 675W |
| Color | White |
Notes
- The pins come loose and are crimped on by you; they are not pre-installed in the housing.
- Push the finished plug fully into the graphics card socket until it latches. A 12V-2x6 plug that is not fully seated can overheat.
- To release a pin from the housing, use a pin extractor such as the ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool.
- The angled set comes in white (MOD-0386) and black (MOD-0387). This listing is the white version; the black (MOD-0387) is sold separately.
In the box
- 1x 12V-2x6 16-pin connector housing
- 1x 90° connector cover
- 12x Power terminal pin
- 4x Sense terminal pin
