ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool (MOD-0320)

The ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool removes the small terminals from ATX3.0 and 12VHPWR connectors without damaging them, so you can re-pin or sleeve modern graphics card power cables. It is made in Rochester, NY, USA, and is comparable to Molex part number 11-03-0043 and Amphenol ICC (FCI) 10129274-030LF.

Properties

Type

Pin extractor tool

For

ATX3.0 and 12VHPWR connectors

Tip

Single narrow blade

Handle

Metal, engraved "ATX 3.0 / 12VHPWR" and "ModMyMods"

Made in

Rochester, NY, USA

Pieces in the pack

1

For ATX3.0 and 12VHPWR terminals

The 12VHPWR connector of ATX3.0 power supplies and graphics cards has smaller terminals than the classic ATX connectors, so an ATX extractor does not fit. This tool has a thin tip made for these terminals, so they come out undamaged and can go back into a connector.

Tool instructions

• Insert the tip of the tool on one side of the terminal until it stops. You may hear or feel a small click once it is fully inserted.
• Pull lightly on the wire and keep that light pulling force on it through step 5.
• Rotate the tool about 25° to 30° clockwise and then counterclockwise along its long axis, once or twice.
• Repeat steps 1 to 3 on the opposite side of the terminal while you keep the light pull on the wire.
• The wire comes loose without extra force while you rotate the tool on the second side of the terminal.
• If the terminal does not come loose, do not force it. Go back to the first side of the terminal and try again.

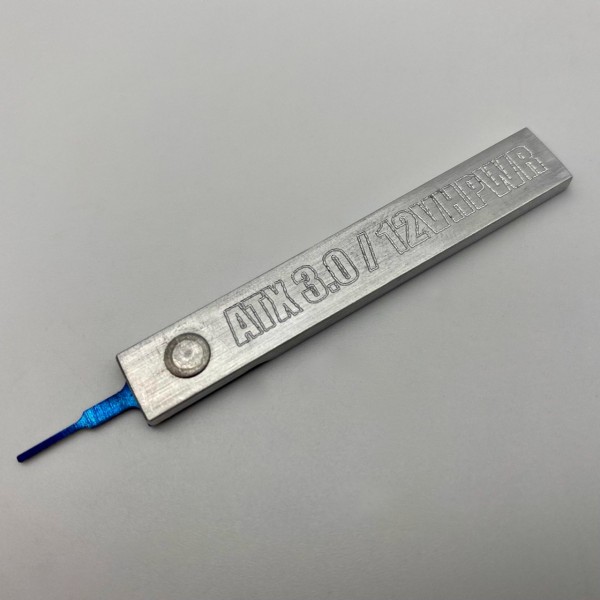

Compact metal tool

The steel tip is fixed to a flat metal handle that is engraved with the connector type on one side and the ModMyMods name on the other, so you always pick the right tool from the drawer. The tool is small and light enough to keep in any toolkit.

Part of the sleeving tool kit

This tool is also part of the ModMyMods Pin Extractor PC Sleeving Tool Kit with the ATX / Mini-Fit Jr, Fan / JST / SL and dual ended Molex tools.

Technical data

In the box

• 1x ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool
