Details

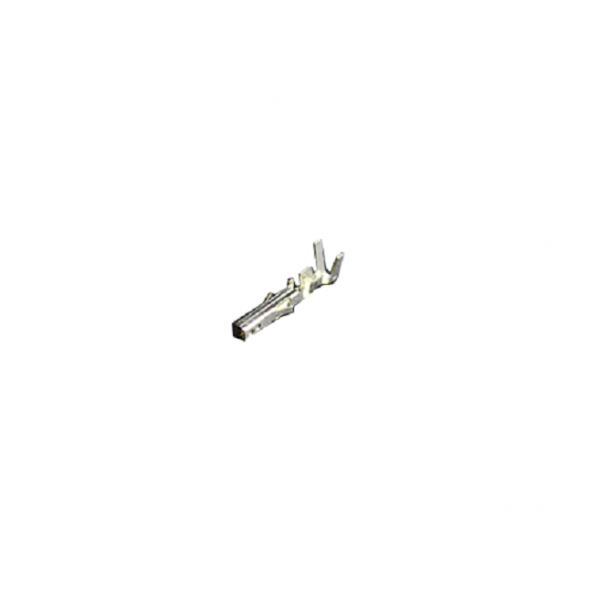

This pack holds 5 loose ATX female pins, the crimp-on terminals for the female ATX-style power connectors: 24-pin ATX (MOD-0096), 8-pin EPS (MOD-0098), 8-pin PCI-E (MOD-0100), 6+2-pin PCI-E (MOD-0101), 6-pin PCI-E (MOD-0103) and 4-pin EPS (MOD-0105). The Molex brand female ATX terminal is the pin used for OEM replacement cables as well as custom extensions, in the connectors that plug onto the motherboard and the graphics card.
Properties
- Type
- Crimp-on terminal, female
- Pin family
- ATX
- Fits
- Female 24-pin ATX, EPS and PCI-E connectors
- Pieces in the pack
- 5
Which connectors they fit
These ATX female pins go into the female ATX-style power connectors: 24-pin ATX (MOD-0096), 8-pin EPS (MOD-0098), 8-pin PCI-E (MOD-0100), 6+2-pin PCI-E (MOD-0101), 6-pin PCI-E (MOD-0103) and 4-pin EPS (MOD-0105). ModMyMods sells each housing on its own, so you can pick exactly the connectors your cables need.
Crimp-on terminals
Each pin is crimped onto the end of a wire and then pushed into the back of the connector housing. The long wings bite into the wire insulation and give a secure grip that will not slip off.
Small packs
The pins come in packs of 5, so you can quickly and easily order just the number you need for a repair or a few cables without overspending.
Technical data
| Type | Crimp-on terminal, female |
| Pin family | ATX |
| Fits | Female 24-pin ATX, EPS and PCI-E connectors |
| Pieces in the pack | 5 |
Notes
- You need one pin for every wire; order a spare or two in case a crimp needs to be redone.
- To take a pin back out of the housing, use a pin extractor such as the ModMyMods ATX / Mini-Fit Jr Pin Extractor Tool (MOD-0318).
In the box
- 5x ATX Female Pin
