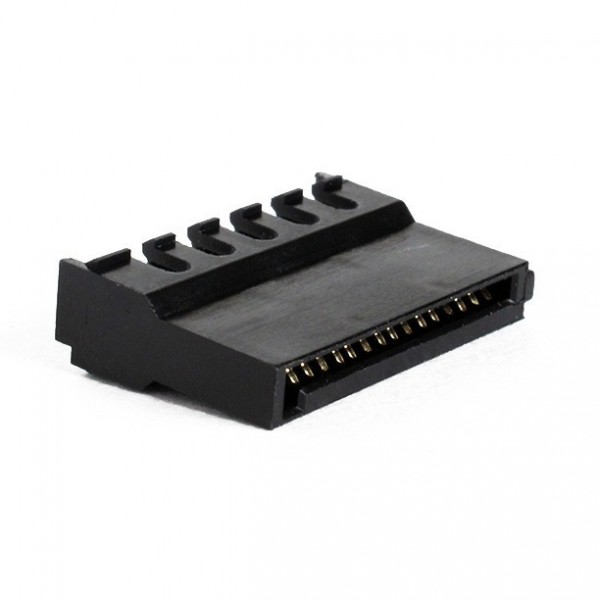

The MMM 5-Pin SATA "Push In" Female Connector - Black is one of the easiest ways to make custom SATA power cables. Strip your wires, lay them into the slots on the back of the connector and press them in, then close the back with an End Cover or a Pass-Through Cover (sold separately) to hold them in place. Because no factory-molded cable is needed, the SATA power wires can be sleeved just like all the other internal cables.
Properties
- Type
- SATA power connector, push-in (insulation displacement)
- Wires
- 5
- Wire termination
- Stripped wire pressed into the slots
- Cover
- End Cover or Pass-Through Cover, sold separately
- Color
- Black
- Pieces in the pack
- 1
Push in, cover, done
Five slots on the back of the connector take the five wires of a SATA power cable. Press each wire into its slot, then snap on a cover. The cover holds the wires down and closes the back of the connector. That is all it takes.
Pick the cover that fits your build
- End Cover (MOD-0249): ends the cable at this connector with a 90° termination.
- Pass-Through Cover (MOD-0250): lets the wires continue to the next SATA connector, for chaining several drives that sit close together on one cable.
Sleeved SATA cables
Molded SATA power plugs make sleeving difficult. With the push-in connector you route individually sleeved wires straight to the connector, so the SATA cables match the look of the rest of the build.
Technical data
| Article | MOD-0248 |
| Type | SATA power connector, female, push-in |
| Wires | 5 |
| Cover | Sold separately (MOD-0249 or MOD-0250) |
| Color | Black |
Notes
- Check the wire order of your power supply cable before you press the wires in.
In the box
- 1x MMM 5-Pin SATA "Push In" Female Connector - Black
